Cochwillan GoFlo travelling screen up and running

Cochwillan GoFlo Screen - GoFlo Screens

Cochwillan GoFlo screen fully commissioned.

The Cochwillan GoFlo screen is now fully commissioned and running. Below is a selection of images from the Cochwillan hydro site. The image above shows the travelling water screen in situ with the bulk of the 4 metre long screen submerged by water. The water within the intake channel at this time of year contains a substantial amount of autumnal debris, notably leaves. If this screen was a static screen, the accumulation of leaves would quickly clog up the fine meshed screen and reduce flow to the turbine, subsequently reducing its generating potential and income earned. It would also require ongoing intervention to manually rake away the debris. The GoFlo self-cleaning screen, however, keeps the mesh free from debris and maintains good flow to the turbine, as well as liberating the site owner from tedious screen maintenance tasks. The meshed screen is essentially a rotating belt which lifts debris out of the water.

Cochwillan GoFlo Screen - GoFlo Screens

Debris collection trough and sluice gate.

Cochwillan GoFlo Screen - GoFlo Screens

The spray bar in action.

Cochwillan GoFlo Screen - GoFlo Screens

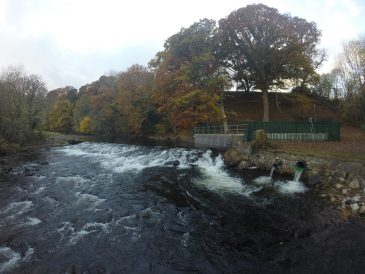

The hydro intake area upstream of the weir.

Cochwillan GoFlo Travelling Water Screen - GoFlo Screens

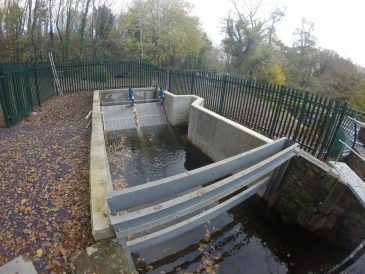

Looking inside the intake compound across to the GoFlo travelling water screen.

The images above show what happens to the debris after it has been lifted from the water. At the highest point of the screen, debris is removed from the screen by a spray bar, which blasts a jet of water through the screen mesh. The debris then falls into a trough partially submerged in water. The trough is connected to a sluice which periodically opens enabling the debris filled water to be returned back to the watercourse, downstream of the intake. The mechanism happens automatically and requires no manual intervention. The images also show how the screen motors, which although have a submersible rating, are located well above the calculated flood level of the river.

The self-cleaning screen is located adjacent to the river (Afon Ogwen), just upstream of the weir (above left) and screens water prior to entering the penstock and turbine. Debris laden water is then returned to the river via a pipe (also visible on the image, above left) downstream of the intake. The intake area in which the screen is located within a specially constructed concrete structure in a secured area.

Cochwillan GoFlo Screen - GoFlo Screens

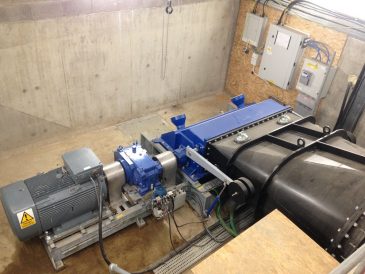

The Cochwillan 90 kW Crossflow turbine.

Cochwillan GoFlo Screen - GoFlo Screens

Crossflow turbine.

The screened water then flows through the penstock, underneath a dual carriageway, through to the turbine house and the 90 kW Crossflow turbine, seen above.

Are you considering a GoFlo travelling water screen ?

GoFlo travelling water screens are used by hydropower owners and operators, water utilities and other industrial abstractors and are manufactured and supported from the UK. Our self cleaning intake screens are available in the United Kingdom and the European Union or other countries by agreement. Your first step is to try our Budgetary Pricing Calculator and then use the Measuring Up Guide to send us details of your site so we can discuss your project and send you a full quote. If you are a hydropower operator try our Additional Hydro Income Calculator to see the financial benefits of using a GoFlo traveling water screen. Alternatively, you can send us a General Enquiry or call us on +44 (0)1453 88 44 00.
